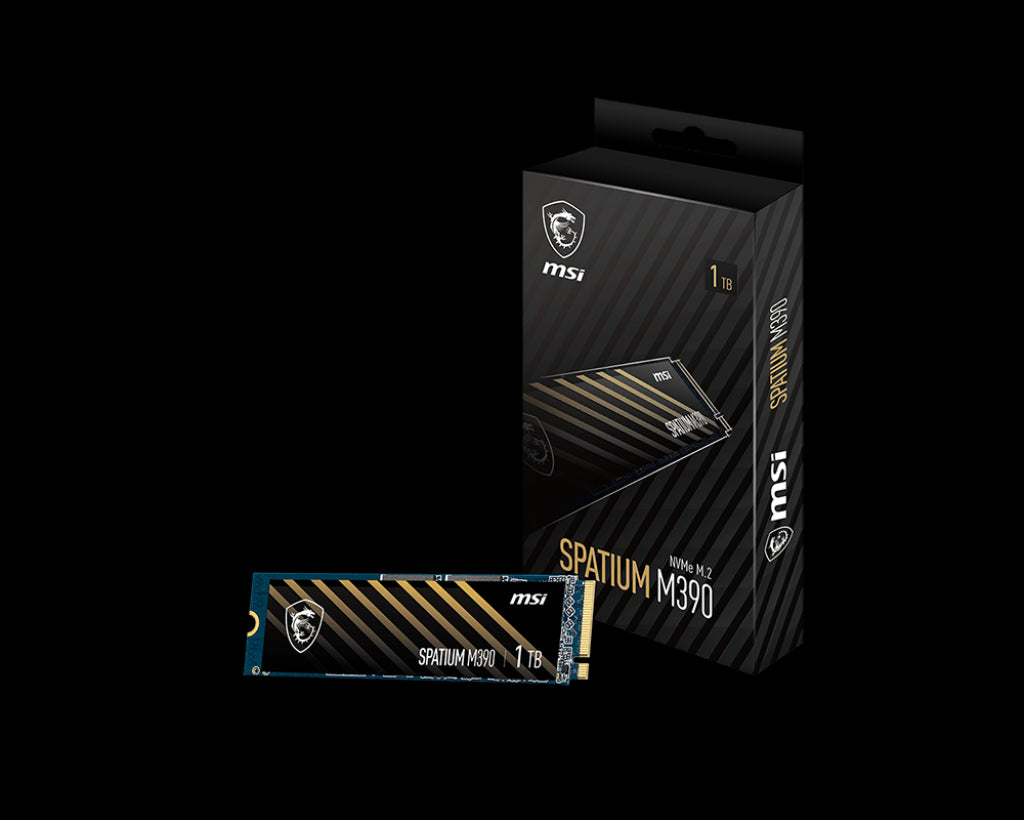

MSI SPATIUM M390 NVMe M.2 1TB SSD, PCIe Gen3x4, Sequential Read up to 3300MB/s, Sequential Write up to 3000MB/s, 400 TBW, 5 Year Warranty

MSI SPATIUM M390 NVMe M.2 1TB SSD, PCIe Gen3x4, Sequential Read up to 3300MB/s, Sequential Write up to 3000MB/s, 400 TBW, 5 Year Warranty

SPECIFICATIONS

Model Name
SPATIUM M390 NVMe M.2

Capacity
1TB

Controller
PHISON E15T

Flash Memory
3D NAND

Form Factor
M.2 2280

Interface
PCIe Gen3x4, NVMe 1.4

Compatibility
PCIe Gen3 / Gen2 / Gen1

Dimensions
80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to(MB/s)
3300

Sequential Write up to(MB/s)
3000

Random Read 4KB up to (IOPS)
420,000

Random Write 4KB up to (IOPS)
550,000

Maximum Operating Power (W)
4.0

Idle Power PS3 (mW)
30

Low Power L1.2 (mW)
5

Operating Temperatures
0°C – 70°C

Storage Temperatures
-40°C – 85°C

Terabytes Written (TBW)
400

Mean Time Between Failure (MTBF)
Up to 1,500,000 Hours

Limited Warranty
5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
Pyrite (Encryption, Data Security)
