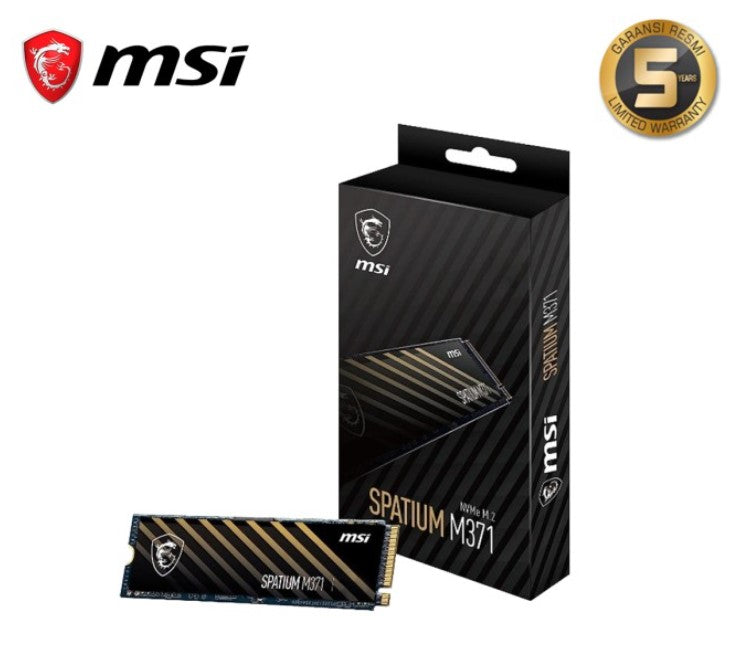

MSI SPATIUM M371 NVMe M.2 500GB, PHISON E13T, 3D NAND, M.2 2280, Sequential Read up to 2200MB/s, Sequential Write up to 1150MB/s, 110 TBW, 5Y WTY

MSI SPATIUM M371 NVMe M.2 500GB, PHISON E13T, 3D NAND, M.2 2280, Sequential Read up to 2200MB/s, Sequential Write up to 1150MB/s, 110 TBW, 5Y WTY

SPECIFICATION

Model Name
SPATIUM M371 NVMe M.2 500GB

Capacity
500GB

Controller
PHISON E13T

Flash Memory
3D NAND

Form Factor
M.2 2280

Interface
PCIe Gen3x4, NVMe 1.3

Compatibility
PCIe Gen3 / Gen2 / Gen1

Dimensions
80.00mm (L) x 22.00mm (W) x 2.15mm (H)

Sequential Read up to (MB/s)
2200

Sequential Write up to (MB/s)
1150

Random Read 4KB up to (IOPS)
60K

Random Write 4KB up to (IOPS)
200K

Maximum Operating Power (W)
2.4

Idle Power PS3 (mW)
30

Low Power L1.2 (mW)
5

Operating Temperatures
0°C – 70°C

Storage Temperatures
-40°C – 85°C

Terabytes Written (TBW)
110

Mean Time Between Failure (MTBF)
Up to 1,500,000 Hours

Limited Warranty
5 Years, or the coverage for the maximum TBW as stated, whichever comes first.

Advanced Features
TRIM (Performance Optimization, OS support required)
SMART (Self-Monitoring, Analysis and Reporting Technology)
LDPC (Low Density Parity Check) ECC Algorithm
End to End Data Path Protection
APST (Autonomous Power State Transition)
AES256/TCG OPAL2.0/Pyrite (Encryption, Data Security)
