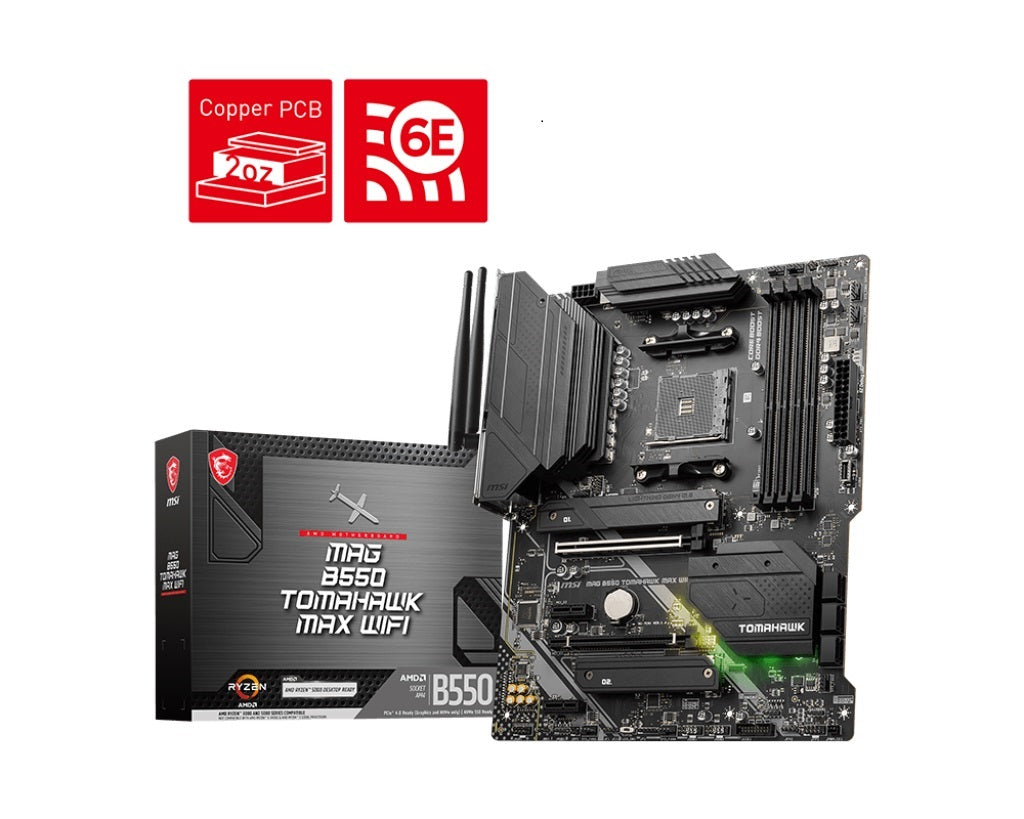

MSI MAG B550 TOMAHAWK MAX WIFI Motherboard, AMD Ryzen AM4, 4xDDR4-128GB, 1xPCIe4.0 x16slots, 2xPCIe3.0 x16slots, 6xSATA 6Gb, 2.5G LANPort, HDMI 2.1

MSI MAG B550 TOMAHAWK MAX WIFI Motherboard, AMD Ryzen AM4, 4xDDR4-128GB, 1xPCIe4.0 x16slots, 2xPCIe3.0 x16slots, 6xSATA 6Gb, 2.5G LANPort, HDMI 2.1

SPECIFICATIONS

Model Name
MAG B550 TOMAHAWK MAX WIFI

CPU Support
AMD Ryzen™ 5000 Series, 5000-G Series, 4000-G Series and 3000 Series desktop Processors

CPU Socket
AM4

Chipset
AMD B550 Chipset

Graphics Interface
1x PCIe 4.0 x16 slot, 1x PCIe 3.0 x16 slot
Support AMD CrossFire™ Technology

Display Interface
Support 4K@60Hz as specified in HDMI™ 2.1, DisplayPort
1.4
– Requires Processor Graphics

Memory Support
4 DIMMs, Dual Channel DDR4-5100+ (OC)

Expansion Slots
2x PCIe 3.0 x1 slots

Storage
1x M.2 Gen4 x4 64Gbps slot, 1x M.2 Gen3 x4 32Gbps slot
6x SATA 6Gbps ports

USB Ports
2x USB 3.2 Gen 2 10Gbps (1 Type-A + 1 Type-C),
5x USB 3.2 Gen 1 5Gbps (1 Type-C + 4 Type-A),
6x USB 2.0

LAN
1x Realtek® RTL 8125B 2.5Gbps LAN

Wireless /Bluetooth
AMD Wi-Fi 6E module, Bleutooth 5.2

Audio
8-Channel (7.1) HD Audio
