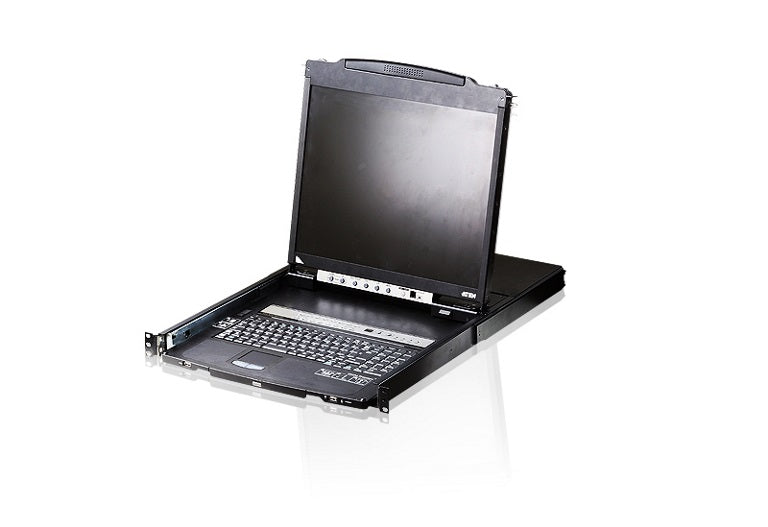

Aten Rackmount KVM Switch Dual Rail 8 Port VGA PS/2-USB w/ 19" LCD Display, 2x Custom KVM Cables Included, 1280x1024@75hz Display, LED Illumination

Computer Connections:
?Direct: 8
?Max.: 256 (via Daisy-chain)
•Port Selection: OSD, Hotkeys, Pushbuttons
•Connectors:
?External Console Port: 1 x SPHD-18 Male (Yellow)
?External Mouse Port: 1 x USB Type-A Female (White)
?KVM Ports: 8 x SPHD-17/18 Female (Yellow)
?Daisy-chain Port: 1 x DB-25 Male (Black)
?FW Upgrade: 1 x RJ-11 Female (Black)
?Power: 1 x 3-prong AC Socket
?USB Port: 1 x USB Type-A Female
•Switches:
?Reset: 1 x Semi-recessed Pushbutton
?Power: 1 x Rocker
?F/W Upgrade: 1 x Slide
?LCD Adjust: 4 x Pushbutton
?LCD On/Off: 1 x LED Pushbutton (Orange)
?Port Selection:
?2 x Pushbutton (LCD);
?8 x Pushbutton (Keyboard)
?Station Selection: 2 x Pushbutton
•LEDs:
?On Line: 8 (Orange)
?Selected: 8 (Green)
?Station ID: 2 x 7-segment LED Display (Orange)
?Power: 1 (Dark Green)
?Lock:
?Num: 1 (Green)
?Caps: 1 (Green)
?Scroll: 1 (Green)
•Emulation - Keyboard/Mouse: PS/2, USB
•Video: 1280 x 1024 @ 75 Hz; DDC2B
•Scan Interval (OSD Select): 1–255 sec.
•I/P Rating: 100–240 V AC, 50/60 Hz, 1 A
•Power Consumption: 120V, 30.1W ; 230V, 30.7W
•Environment:
?Operating Temp.: 0 ~ 50°C
?Storage Temp.: -20 ~ 60°C
?Humidity: 0 ~ 80% RH, Non-condensing
•Physical Properties:
?Housing: Metal + Plastic
?Weight: 14.83 kg
?Dimensions (DxWxH): 68.04 x 48.00 x 4.40cm
•Package Contents:
?1 x CL5808 KVM Switch with Standard Rack Mounting Kit
?2 x Custom KVM Cables
?1 x 5-in-1 Console Cable
?1 x Firmware Upgrade Cable
?1 x Power Cord
?1 x User Instructions
